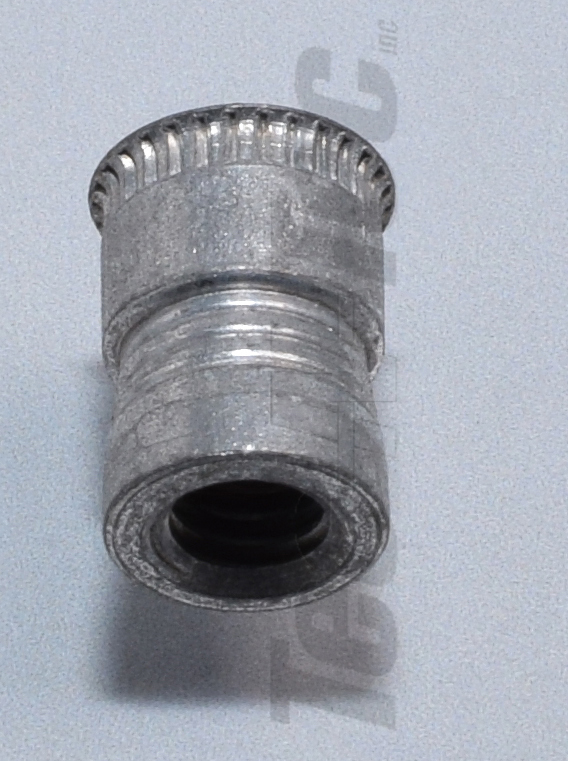

Thread size | M4x0.7 |
Body material | Aluminum |
Maximum material thickness in millimeter (G) | |
Minimum material thickness in millimeter (G) | 0.76 |
Head type | T |
Head diameter in millimeter (HD) | 6.83 |
Head diameter tolerence in ± millimeter | 0.13 |
External diameter in millimeter (D) | 6.29 |
Diameter tolerence in ± millimeter | 0.050 |
Length of the insert in millimeter (L) | 9.40 |
Length of the insert tolerence in ± millimeter | 0.38 |
Hole / drill required | 6.53mm ( # F ) |
Thickness of the head in millimeter (HH) | |
Thickness of the head tolerence in ± millimeter | |
Body color | Cadmium matte silver |
