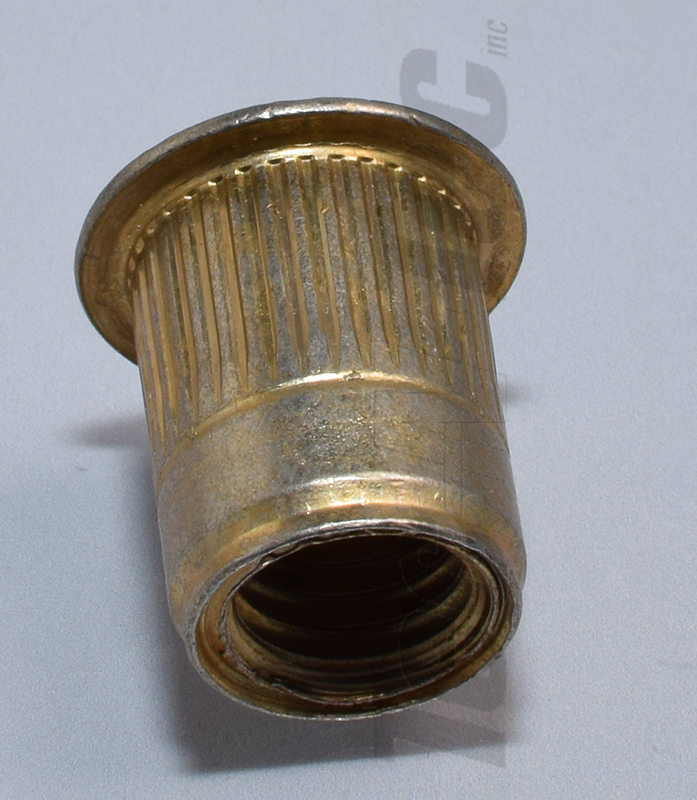

Thread size | M10x1.5 |
Body material | Steel |
Maximum material thickness in millimeter (G) | 3.80 |
Minimum material thickness in millimeter (G) | 0.70 |
Head type | L |
Head diameter in millimeter (HD) | 17.40 |
Head diameter tolerence in ± millimeter | 0.25 |
External diameter in millimeter (D) | 13.41 |
Diameter tolerence in ± millimeter | 0.050 |
Length of the insert in millimeter (L) | 17.53 |
Length of the insert tolerence in ± millimeter | 0.38 |
Hole / drill required | 13.49mm ( 17/32 ) |
Thickness of the head in millimeter (HH) | 0.89 |
Thickness of the head tolerence in ± millimeter | 0.07 |
Body color | Zinc yellow |
