Thread size | M6x1.0 |
Body material | Steel |
Maximum material thickness in millimeter (G) | 9.5 |
Minimum material thickness in millimeter (G) | 6.5 |

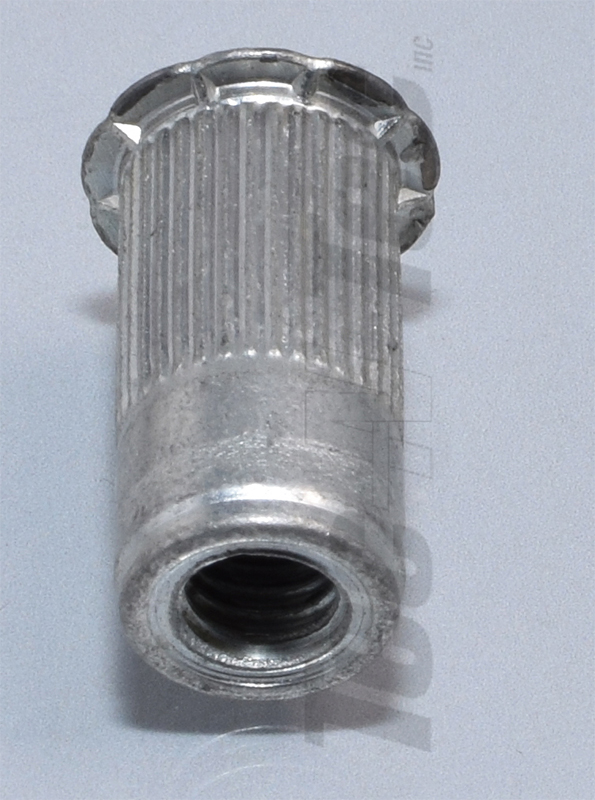

Head type | Wedge head |
Head diameter in millimeter (HD) | 12.70 |
Head diameter tolerence in ± millimeter | 0.25 |
External diameter in millimeter (D) | 9.85 |
Diameter tolerence in ± millimeter | 0.050 |
Length of the insert in millimeter (L) | 19.42 |
Length of the insert tolerence in ± millimeter | 0.25 |
Hole / drill required | 9.92 ( 25/64 ) |
Thickness of the head in millimeter (HH) | 0.95 |
Thickness of the head tolerence in ± millimeter | 0.07 |
Body color | Cadmium matte silver |
