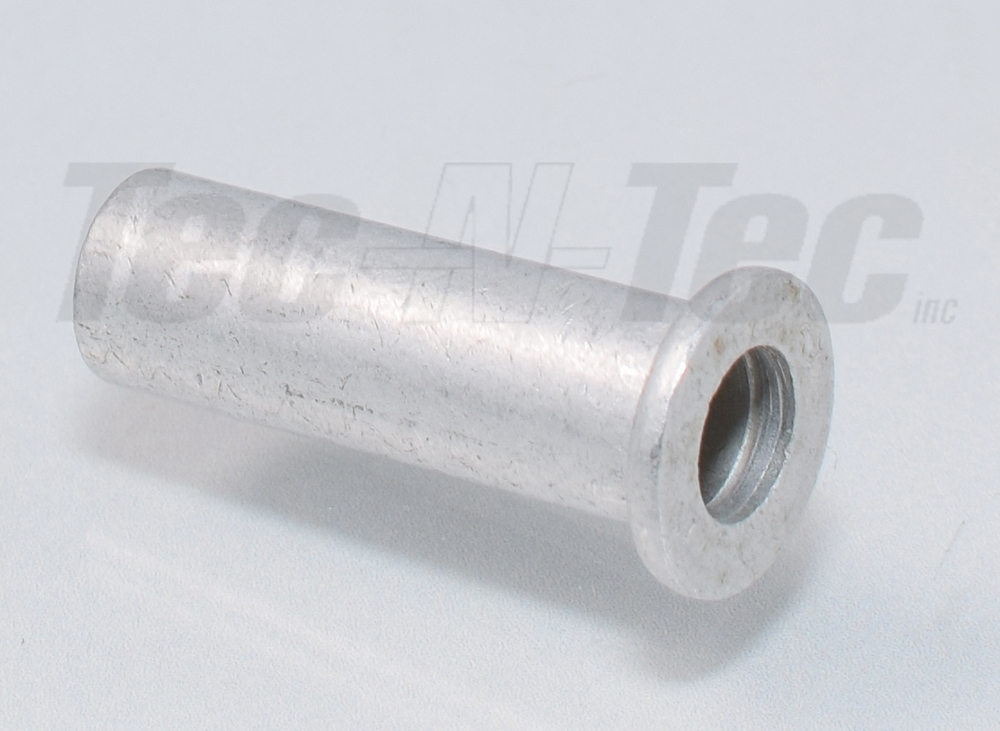

Thread size | 0.190 10-32 |
Body material | Aluminum |
Maximum material thickness in inches (G) | 0.080 |
Minimum material thickness in inches (G) | 0.010 |
Head type | RN |
Head diameter in inches (HD) | 0.406 |
Head diameter tolerence in ± inches | 0.015 |
External diameter in inches (D) | 0.248 |
Diameter tolerence in ± in inches | 0.004 |
Length of the insert in inches (L) | 0.781 |
Length of the insert tolerence in ± inches | 0.015 |
Hole / drill required | 0.250 1/4 |
Thickness of the head in inches (HH) | 0.038 |
Thickness of the head tolerence in ± inches | 0.004 |
Body color | Zinc silver |
