| ILM, STEEL THREADED INSERT 6-32 X .080 GRIP |
|
| Quantity | Price | Package | Total | Colonne1 | Colonne1 |
| | | | | |
| 100 | 0.1531 CAD$ | 15.31 CAD$ |
| 500 | 0.1349 CAD$ | 67.45 CAD$ |
| 1000 | 0.1146 CAD$ | 114.60 CAD$ |
| 5000 | 0.0868 CAD$ | 434.00 CAD$ |
| invisible car donne toujours le meme taux |
|
| 15.31 CAD$ for 100 unit(s) |
| | There are not enough products in stock |
|
| | | | | |

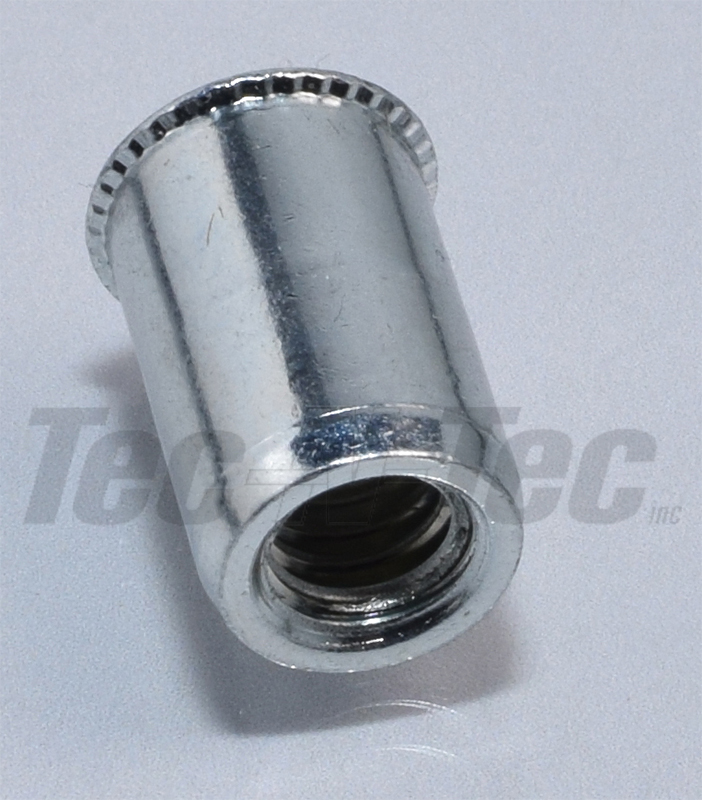

| ASTROTEC ILM. This nutsert threaded insert, equivalent to AVK AOS4T-6-32-080, except plating features a reduced profile head design and a smaller body diameter. It can be specified when the application design parameters require a smaller hole than IRL model. |
|
| Thread size | 0.138 6-32 |
| Body material | Steel |
| Maximum material thickness in inches (G) | 0.080 |
| Minimum material thickness in inches (G) | 0.020 |
| Head type | M |
| Head diameter in inches (HD) | 0.295 |
| ± Head diameter tolerence in inches | 0.010 |
| External diameter in inches (D) | 0.246 |
| ± diameter tolerence in inches | 0.003 |
| Length of the insert in inches (L) | 0.385 |
| Length of the insert tolerence in ± inches | 0.010 |
| Hole / drill required | 0.250- # 1/4 |
| Thickness of the head in inches (HH) | 0.018 |
| Thickness of the head in ± in inches | 0.003 |
| Body color | Zinc silver |
| | |
| |
|
